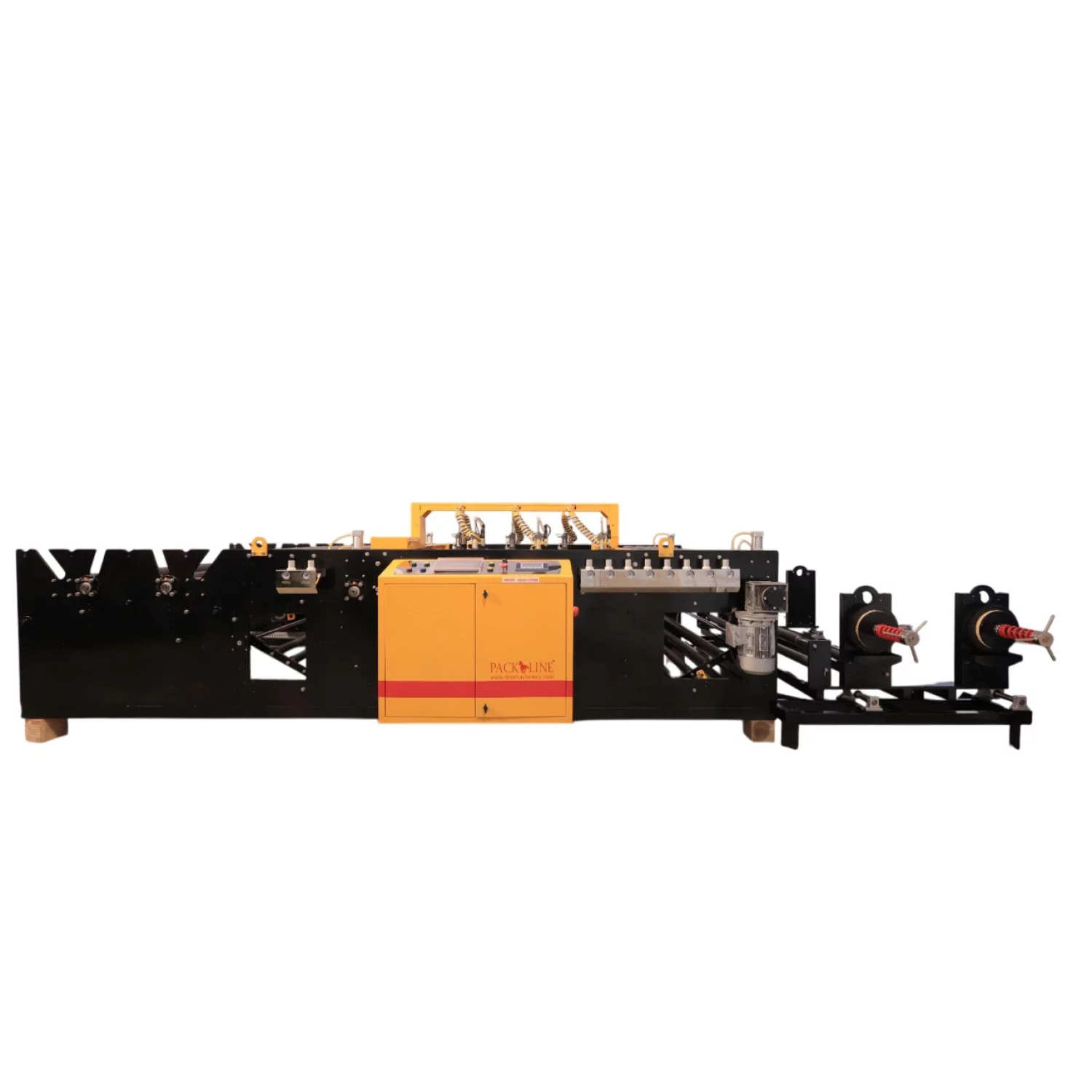

The MFPM 1500D4W are advanced mulch film punching machines designed for high-speed, precise punching of films up to 1000 mm to 1500 mm wide. With four-way punching capability, these machines offer enhanced productivity and are built to handle large-scale agricultural requirements with ease and reliability.
TECHNICAL SPECIFICATION
Model | Unit | 1500D4W |
Size of Film Min/Max. | mm | 1000mm/1500mm |
Unwinder Roll Dia Max. | mm | 600mm |
Unwinder Roll Weight | kg | 300-350kg |
Film Thickness Min/Max. | Micron | 15 / 50 |
Machine Line Speed | MPM | 50 to 60 |
Machine Output Speed | MPM | 200 to 240 |
Punching Tool Size | mm | 55 & 65 & 75 Standard |
No. of Punch | Nos. | 6 |
Electronic Edge Guide Unit | Yes / No | Yes |
Auto Stop at Meter Completed | Yes / No | Yes |
Rewind Roll Length | Mtr | Max 1600 |
Rewind Roll Dia Max | mm | 300 |
Material to use | 0 | Mulch |
Total Load | KW/HP | 7KW/9.3HP |
Dimension | L x W x H (mm) | 5300x2700x1500 |
The MFPM 1200D / 1500D is our advanced Mulch Film Punching Machine, designed for precision and efficiency. With its robu... Continue
The MFPM 1200D4W are advanced mulch film punching machines designed for high-speed, precise punching of films up to 800 ... Continue

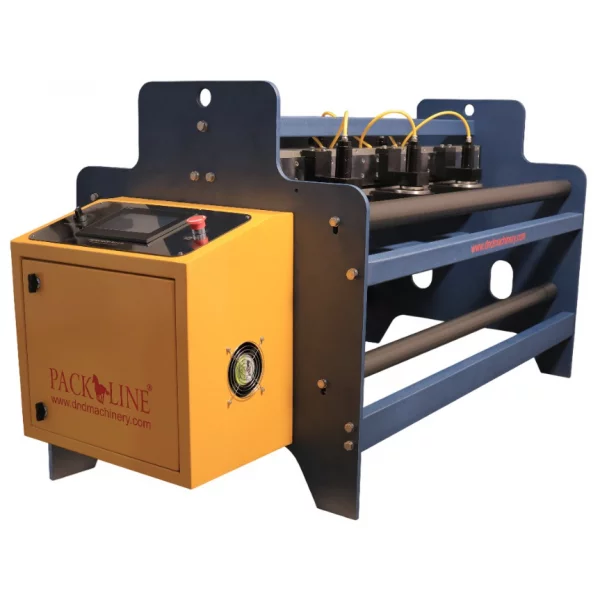

MACRO PERFORATION UNIT UTILIZE COMPRESSED AIR-POWERED HAMMERS,PRECISELY CONTROLLED BY A HIGH PERFORMANCE PLC SYSTEM. THE... Continue

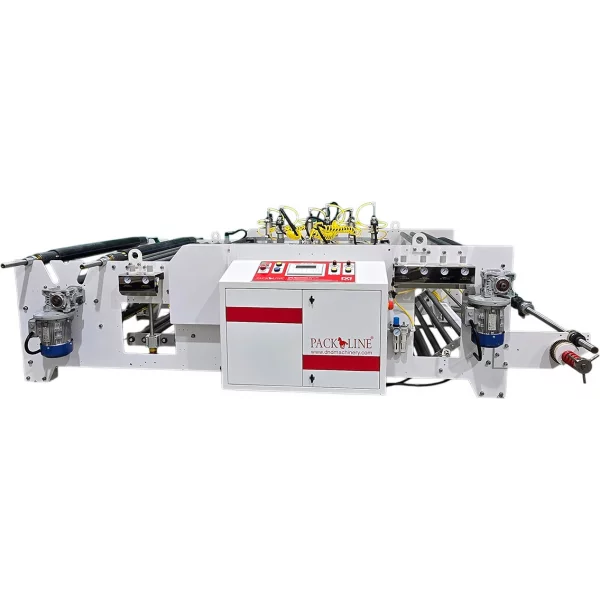

The MFPM 1200 (ECO) is our advanced Mulch Film Punching Machine, designed for precision and efficiency. With its robust ... Continue
The MFPM 1500D is our advanced Mulch Film Punching Machine, designed for precision and efficiency. With its robust build... Continue

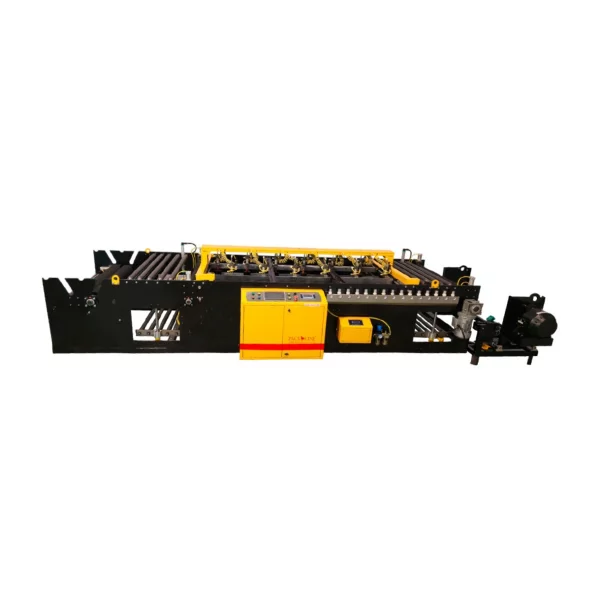

The MFPM 1200DH is our advanced Mulch Film Punching Machine, designed for precision and efficiency. With its robust buil... Continue

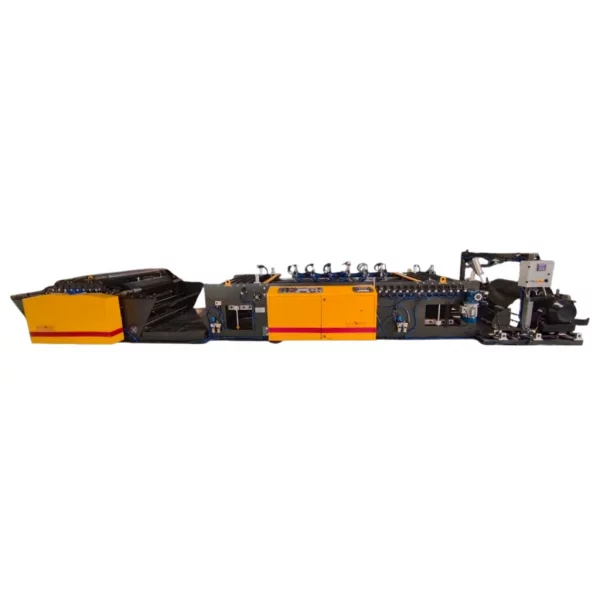

Our Auto Winder Punching Machine is designed for seamless and efficient winding of mulch films and other plastic sheets,... Continue
DMPL’S Macro Perforation Unit utilize compressed air-powered hammers, precisely controlled by a highperformance PL... Continue
This machine is an ideal choice for industries that require robust, scalable, and efficient production capabilities with... Continue

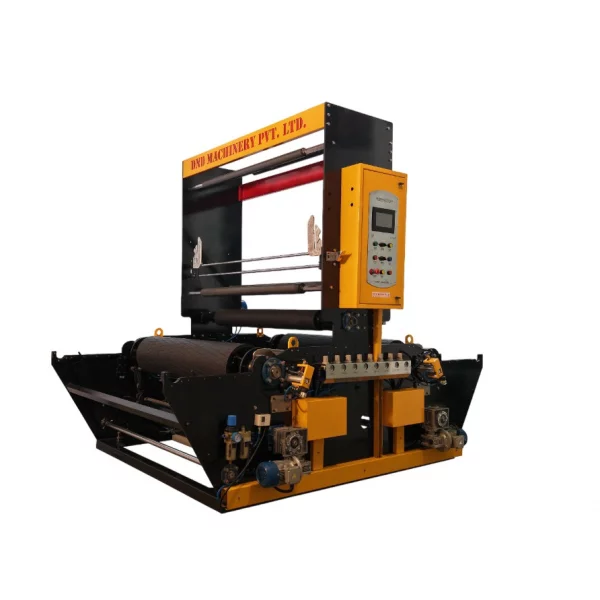

The Auto Winder Unit is an automated solution for efficient winding of films and sheets, designed to streamline your pro... Continue
