MACRO PERFORATION UNIT

AvailabilityIn Stock
CategoryPerforation Blades
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

MACRO PERFORATION UNIT Details

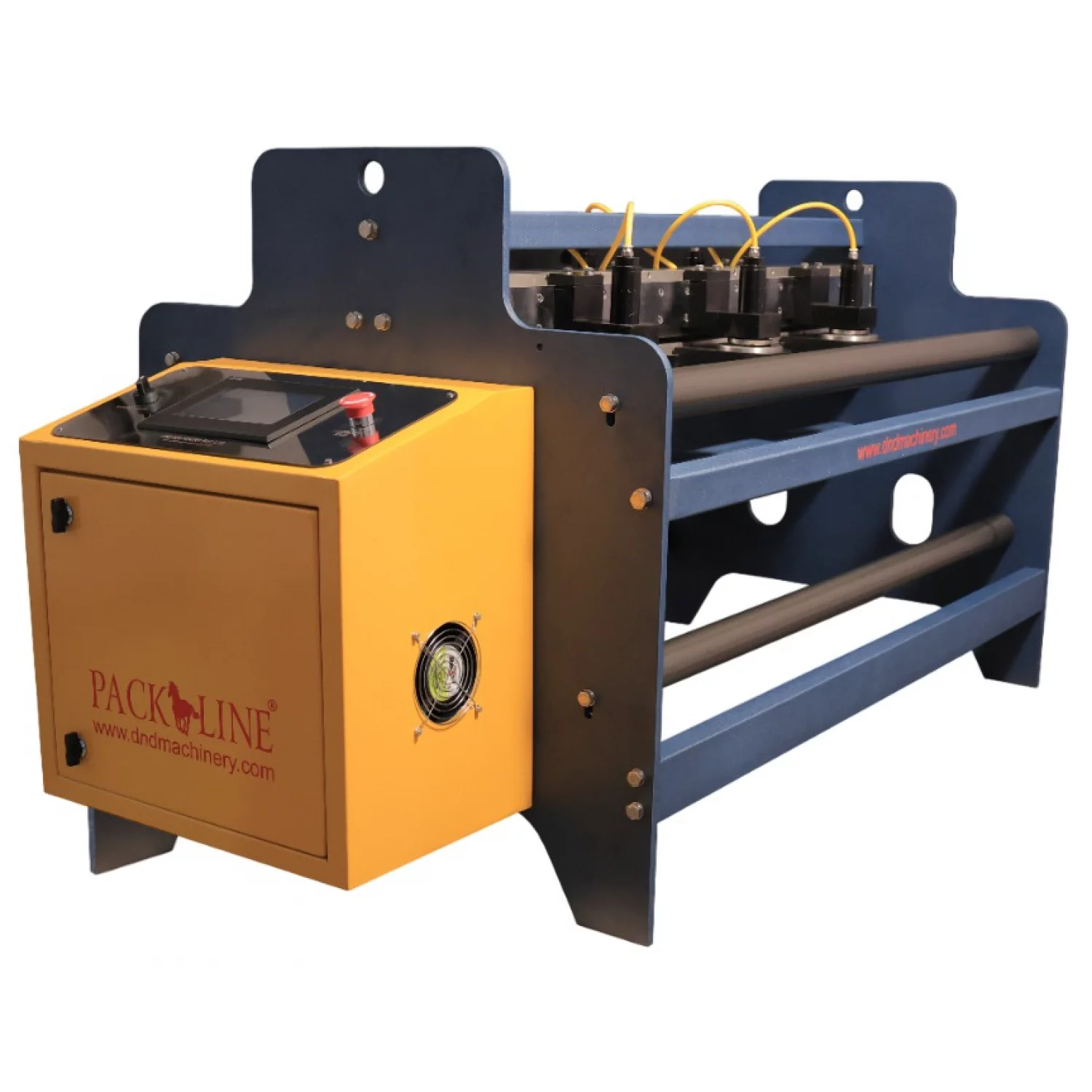

DMPL’S Macro Perforation Unit utilize compressed air-powered hammers, precisely controlled by a highperformance PLC system. These hammers strike against a calibrated matrix to create perforations ranging from 2 mm to 100 mm in diameter, including specialized shapes like European holes or handle-style openings for bags. With years of expertise, DMPL offers a wide range of structural configurations, electronic control systems, and punching head options—designed to meet diverse customer requirements in both performance and budget.

  • Flexible materials moving at high speed.
  • Ensuring Maximum Stability & Durability
  • Strenghten double bridged frame.

TECHNICAL SPECIFICATION

Hole diameter6mm to 100mm
Min. horizontal hole distance100mm
Vertical hole distancecustomizable
Max. perforation frequency30Hz
Max. material speed200m/min
Max. material width3.000mm
Max. material thicknessUpto 100 microns
Bridge frameDouble
Software 4.0 ready***included
Suction systemincluded

OPTIONAL

Photocell for printed materials
Acoustic and protective shield
Trolley
ROT System
