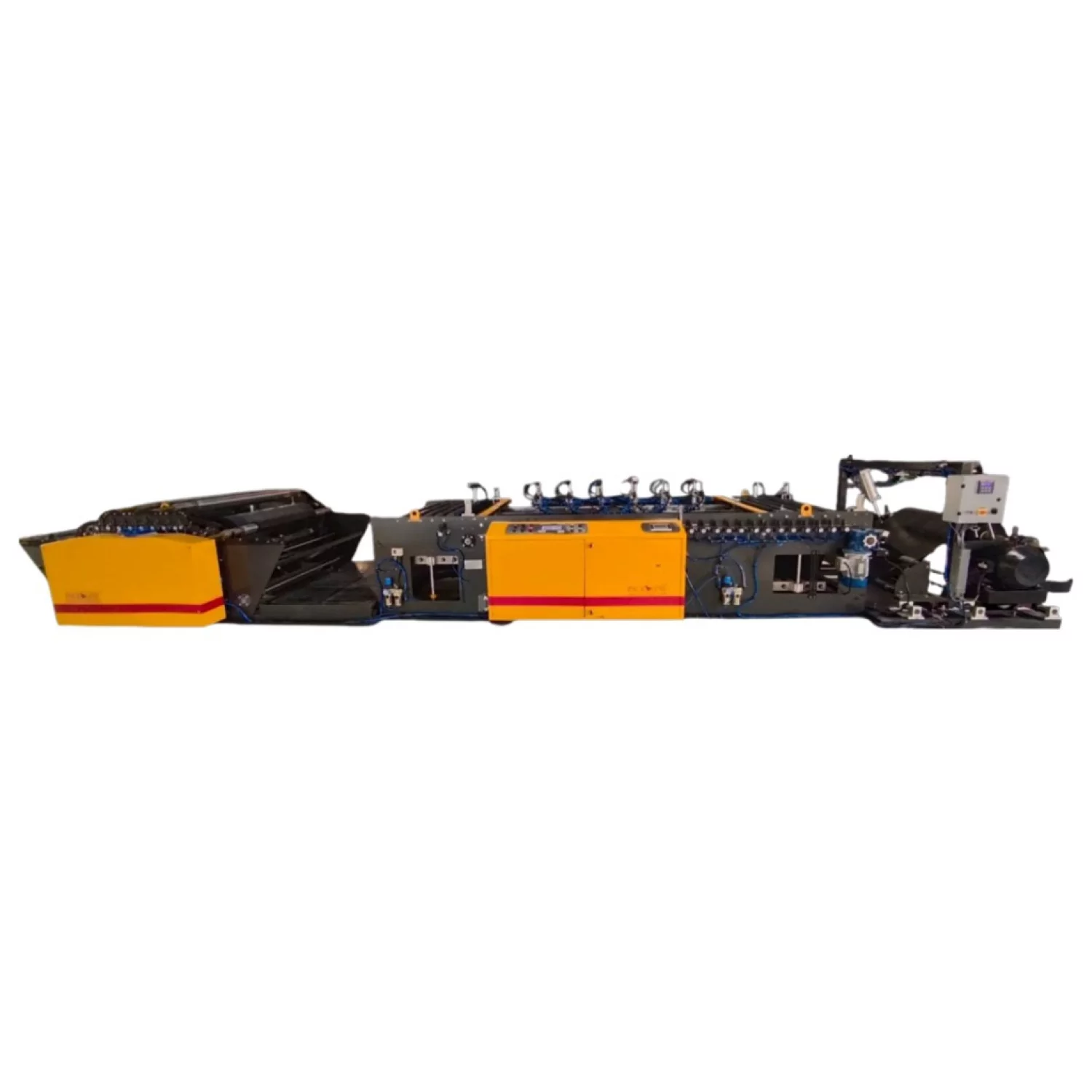

AUTO WINDER PUNCHING MACHINE
AUTO WINDER PUNCHING MACHINE Details
Our Auto Winder Punching Machine is designed for seamless and efficient winding of mulch films and other plastic sheets, ensuring smooth and automatic roll formation with minimal manual intervention. Ideal for optimizing production speed and maintaining consistent quality, the Auto Winder is a reliable choice for maximizing efficiency in your operations.
- Max Film Width 1200mm.
- Max Output 140 to 160 MPM Countinoous Motion.
- Film Thickness Rang 15 Micron to 50 Micron.
- Electronic Edge Guide Unit.
- Pneumatic Roll lifter at unwinder side.
- Output 160-200 & Addition Require Auto Tension Controller.
- Max capacity 1 tone.
- Continuous Shaft Changer.
- Roll lifting trolley - 1 tone capacity.
- Extra long Punching Attachment for High speed.
- Variable punching station with x-y Position.
TECHNICAL SPECIFICATION
| Model | Unit | 1200D4W |
| Size of Film Min/Max. | mm | 800mm/1200mm |
| Unwinder Roll Dia Max. | mm | 900mm |
| Unwinder Roll Weight | kg | 800-1000kg |
| Film Thickness Min/Max. | Micron | 15 / 50 |
| Machine Line Speed | MPM | 80 to 100 |
| Machine Output Speed | MPM | 160 to 200 |
| Punching Tool Size | mm | 55 & 65 & 75 Standard |
| No. of Punch | Nos. | 12 |
| Electronic Tension Controller | Yes / No | Yes |
| Electronic Edge Guide Unit | Yes / No | Yes |
| Auto Stop at Meter Completed | Yes / No | Yes |
| Rewind Roll Length | Mtr | Max 1600 |
| Rewind Roll Dia Max | mm | 350 |
| Material to use | 0 | Mulch |
| Total Load | KW/HP | 12KW/16HP |
| Dimension | L x W x H (mm) | 9000x2600x1500 |
